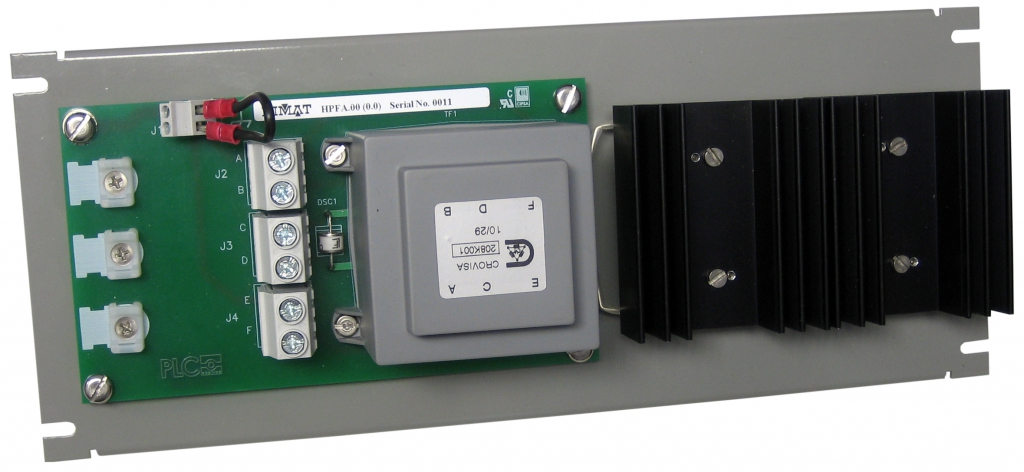

HPFA – Differential Hybrid Circuit

Cabinet-mounted differential hybrid circuit for PLC systems over HV lines

Connection of a PLC terminal to two or three phases of a power line. Parallel coupling of two PLC terminals which use adjacent frequency-bands.

Key features

• Application:
  Phase-to-phase coupling.
  Two PLC terminals coupling.
  Three-phase coupling.
• Nominal power (P.E.P): 400 W.
• Distortion and intermodulation: 80 dB below the level corresponding to the nominal P.E.P.
• Insulation between connection terminals and chassis: >1.5 kVrms.
• Frequency range: 40÷500 kHz.
• Nominal impedance: 50 or 75 Ω. Others on request.
• Composite loss: <0.3 dB in the whole band.
• Return loss: > 25 dB in the whole band.
• Protection elements: gas surge arrester (PLC equipment side).
