EV chargers – Smart & robust charging solutions

ZIV spot,

a compact device recommended for private & corporate use

ZIV Star,

a robust desing, recommended for corporate & public use

  • Built in protections​
  • Single phase (11kW pers socket) or Three phase (22kW pers socket)​
  • Suitable for Simultaneous &  semi fast charging​
  • Dual socket or cable​
  • Anti-vandalism cover

Wich one suits you better?

ZIV SPOT ZIV STAR
To be used in Private use ●
Public Use (eg. Hotels, Supermarkets,Parking lots, Community Garage where 2 sockets per unit are required) – ●
Corporate Use ( consulte equipo recomendado según condiciones de uso) ●
For 1 vehicle (Max 22 kW) ● ●
2 vehicles (Max 11 kW -single phase model) – ●
2 vehicles (Max 22 kW -three phase model) – ●
Enclosure Plastic ● –
Metallic Anti-vandalism Cover – ●
Plugs Socket or Hose (cable) available – ●
Single Deported socket ● –
Single & Dual socket / hose (cable) – ●
Inbuilt protections Magnetothermic – ●
Differential Protection – ●
Wifi ● ●

Functional Level

  • Authentication
  • Start / stop
  • Entry/Exit Lockout
  • Recharge schedule
  • Query historical recharge data
  • Set the maximum static power
  • Allow dynamic power management (load balancing)

ZIV EV APP

Technical Data

Key features​

POWER
  • Max power 7,4/22 kW (1Ph/3Ph) | 22 Max 11 kW –single phase model/44kW (ZIV Star)
  • AC 230-400 V / 16-32 A Frecuency
  • 50/60 Hz
DISPLAY & LEDS
  • Integrated display with access to all charger information
  • LED indicator lights for charging status. 1 Display, 4 Buttons, 2 LEDs , 1 metering
COMMS
  • Total connection to improve maintenance, recharge management and SW updates
  • Bluetooth, 3G, OCPP 1.6J and Modbus communication
  • Pins: 2 RJ-11(RS-485) ; 1 Pin Home AC; 1 Pin Hilo Pilot wire according to IEC 61851-1
ENCLOSURE
  • Customization to the customer’s brand using vinyl or plastic
  • ABS plastics (ZIV Spot) | Metallic anti-vandalism cover (ZIV Star)
KEY FEATURES

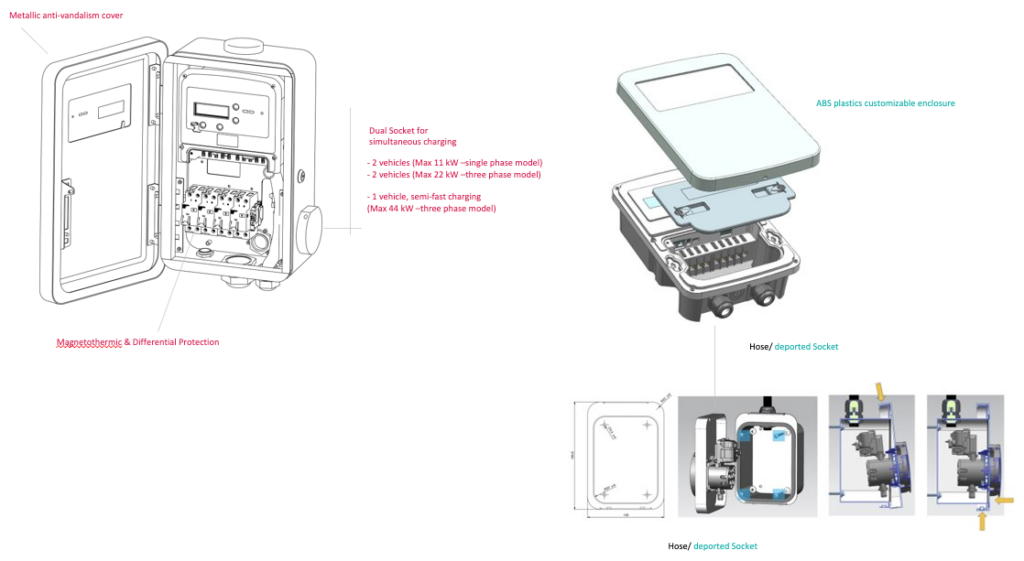

  • Hose/ deported Socket (ZIV Spot) | Dual Socket for simultaneous charging (ZIV Star)
  • Mark CE – IEC 61851-1 Ed3.0
  • DC leakage current protection | + Magnetothermic & Differential Protection (ZIV Star)
  • Mode 3 charge
  • Configuration in APP and Display

Electrical & Mechanical parameters​

ZIV SPOT ZIV STAR
Charge Mode Mode 3 according to IEC 61851-1 ● ●
Input supply voltage 230V 1Ph+N+PE, 50/60Hz
400V 3Ph+N+PE, 50/60Hz		 ● ●
Power output Single plug: Up to 7,4 kW (1ph) and up to 22 kW (3ph) ● ●
Dual PLUG: Up to 7,4 kW (1ph) and up to 44 kW (3ph) ●
Type of earthing (depends on the installation) TT by Defect
TN for UK		 ● ●
Socket type Type 2 socket according to IEC62196-2
Socket type 2 according IEC62196-2 with 5m cable		 ● ●
Inbuilt protection DC leakage detector (6mA)
Relays for overcurrent protection		 ● ●
Magnetothermic – ●
Differential Protection – ●
Overvoltage category OV Cat. III (Requires external Surge Protection Device) ● ●
Energy meter Class B (A) 2 (R) EN 50470-3 ● ●
Standby consumption < 1.5 W per phase ● ●
Cable feed Bottom ● ●
Cable Output Bottom ● ●
Protection degree IK10 ● ●
IP 54 ●
IP55 ●
Insulation Class I (earth terminal) ● ●
Enclosure Plastic ● –
Reinforced Aluminium, anti-vandalism – ●
Mounting Wall or ground using charger pedestal ● ●
Operation temperature -25ºC to +55ºC ● ●
Storage temperature 85ºC ● ●
Altitude <2000m ● ●
Relative humidity 5-95% With no condensation ● ●
Cable handle (cable support) Opcional ● ●

User interface

Connectivity​

LTE, Ethernet, Bluetooth, RS485​

User authentication​

RFID MIFARE card reader, APP​

User interface​

APP ZIV​
LCD screen 22 x 70 mm​
4 buttons​

Status indication​

2 status LEDs​
1 Energy Pulse LED (kWh)​

Communication protocol​

OCPP 1.6J​
Bluetooth​
Modbus RTU​

Connection ports​

RS485 connector (RJ11)​
4 pin male connector (PWM,CP, PP)​
USB C​
RJ45 (ethernet input for models with Modem)​

Certificates

IEC 61851-1:​

2017 Electric vehicle conductive charging system​

IEC 61851-21-2:​

2018 Electric vehicle conductive charging system​

IEC 60068-2-30​

(Test Db) Environmental testing​

IEC 60068-2-1​

(Test Ad) Environmental testing​

IEC 61439-7:​

2018 Low voltage switchgear and control gear assemblies.​
