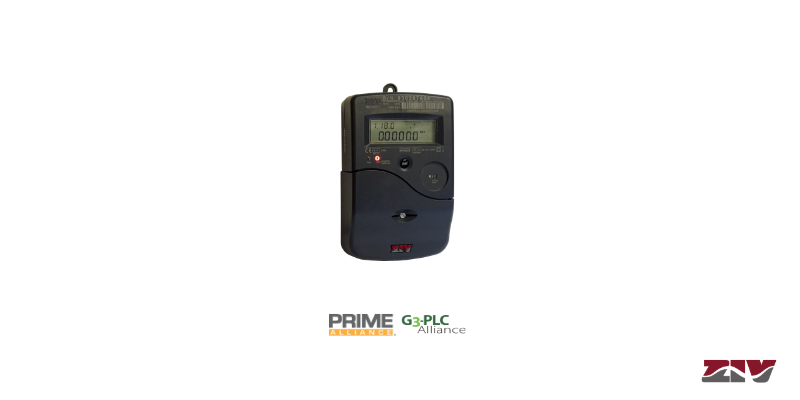

1 ph & 3 ph 1.3 PRIME PLC smart meter | 5CTM/D
1.3 PRIME PLC smart meters that provide robust automated meter reading solutions in large smart grid deployments 5CTM & 5CTD meters integrate energy measurement, load profile and Time of Use (TOU) features. Local and remote communication capabilities enable complete meter operation. This includes data reading, configuration setting changes, date synchronization and operation of the built in breaker. A complete and [...]
Data Concentrator for Secondary Substations | 4DCT
A metering data concentrator unit (DCU) that includes an advanced low voltage supervisor and Powerline Communication (PLC) controller with network monitoring functions, in addition to remote smart meter management functions Features Remote firmware upgrade capability, WEB/TELNET configuration options. Connection to the ZIV AMI Manager (a PLC debugging tool). NTP synchronization. A hardware watchdog for enhanced system reliability. SNMP management for efficient network monitoring. Secure access control [...]
ACA-1R – Sensor for Distribution Automation and AMI deployments
Resistive voltage sensor intended for installation into a symmetrical tee connector in gas insulated switchgear (GIS). ACA series sensors and couplers are an essential component for Distribution Automation and AMI deployments. The ACA series provide high accuracy sensors and superior performance broadband PLC couplers for MV gas insulated switchgears. ACA series sensors are must have devices for distribution automation deployments. Enabling an unprecedented degree of integration by providing a compact design [...]
DRMO-1/10K/05 – Voltage Sensors for Air Insulated MV Facilities
Essential Component for MV Distribution Automation Deployments DRMO sensors provide high accuracy MV measurement for indoor and outdoor air insulated switchgear. They are are a must have device for distribution automation deployments in overhead and underground medium voltage networks. The compact design enables a perfect fit in MV indoor and outdoor air insulated switchgears. The DRMO has 0.5% accuracy class, [...]

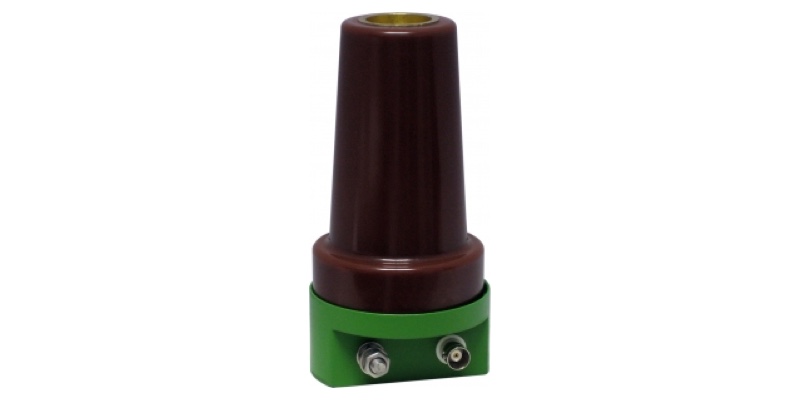

ACA-500/ACA-36 – Capacitive Coupler
Capacitive PLC coupler (wideband transmission) For injecting and transmitting the PLC signal over the MV phase-to-ground distribution feeders. Key features For installation into a symmetrical tee connector in gas insulated switchgear (GIS). Dimensions comply with UNE EN-50181 standard. Frequency range: 2 ÷ 30 MHz. Coupling type: Phase-to-ground by capacitor of 500 pF. System voltage (between phases): 24 kVrms (ACA-500). 36 kVrms (ACA-36). [...]
CAMS-10K – Combined Sensor & Coupler
Combined sensor & PLC coupler for MV power lines The CAMS-10K is designed to solve voltage measurement and Powerline Communications (PLC) transmission through Medium Voltage (MV) lines for overhead and underground cable, in masonry switchgear and air insulated switchgear (AIS). It consists of one compact block, which integrates a capacitive PLC coupler and a voltage divider. Key features Complete solution [...]
FBBP – Notch Band Filters
Filters to mitigate conducted disturbances in LV networks Filters designed to mitigate conducted noise generated by domestic or industrial appliances. Key features For enhance remote meter reading. Specially designed to mitigate interferences in the CENELEC-A EN 50065 frequency band (PRIME, G3, Meters & More). Low pass or tuned blocking filter (filter impedance does not affect normal meter operation). Single-phase, with [...]
Broadband PLC
ZBP-1 – MV PLC Equipment
MV PLC communications - Distribution Line Carrier for urban environment Main applications: Data transmission in mid-distance levels (urban environment) + Connectivity between Distribution Transformer Centers (DTC). The main purpose of the ZBP-1 is data transport for services in Medium Voltage Secondary Substations to a Primary Substation. The ZBP-1 is a good option for transmitting data at high speed between Distribution [...]
PLC Couplers
ACA-500/ACA-36 – Capacitive Coupler
Capacitive PLC coupler (wideband transmission) For injecting and transmitting the PLC signal over the MV phase-to-ground distribution feeders. Key features For installation into a symmetrical tee connector in gas insulated switchgear (GIS). Dimensions comply with UNE EN-50181 standard. Frequency range: 2 ÷ 30 MHz. Coupling type: Phase-to-ground by capacitor of 500 pF. System voltage (between phases): 24 kVrms (ACA-500). 36 kVrms (ACA-36). [...]
CAMS-10K – Combined Sensor & Coupler
Combined sensor & PLC coupler for MV power lines The CAMS-10K is designed to solve voltage measurement and Powerline Communications (PLC) transmission through Medium Voltage (MV) lines for overhead and underground cable, in masonry switchgear and air insulated switchgear (AIS). It consists of one compact block, which integrates a capacitive PLC coupler and a voltage divider. Key features Complete solution [...]
TACM-1 – PLC coupler for Low Voltage
Capacitive coupler for LV networks up to 1 kVrms This coupler is designed to perform the role of interface between the PLC modem and the Low Voltage line, providing galvanic insulation and impedance matching from the equipment side to the line side. Key features For injecting and receiving the high-frequency signals over low-voltage networks up to 1 kVrms. Provides galvanic [...]
